Light weight and compact 20 gallon accumulator

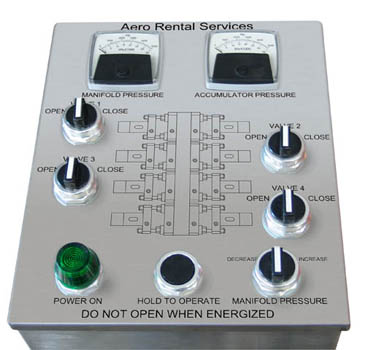

Aero’s 20 gallon self-contained remote accumulator unit has been built and designed mainly for small coil tubing stacks and hydraulic frac valve operation. These units come with four and five station controls and can be operated from the skid, or from the electric over hydraulic remote control panel. They also come equipped with a pressure regulator to control the hydraulic pressure from 3,000 psi and lower.

Each unit comes with an N2 emergency backup system that can be operated from the skid. The engine is equipped with a positive air shut down valve and a fuel kill cable.

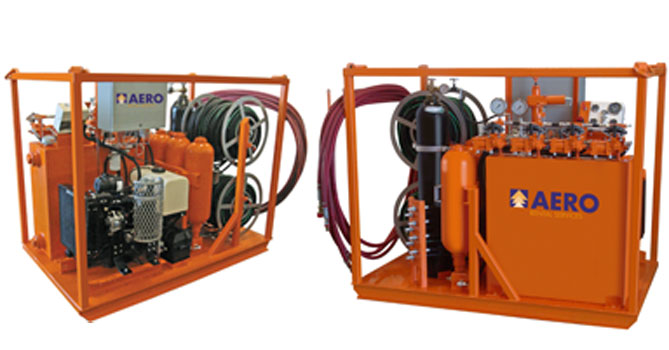

Single Load Skid Mounted Accumulator

Aero’s skid-mounted accumulators range from 66 to 160 gallons and come complete with light plant mounted all in one building resulting in 1 skid load for ease and safe installation..

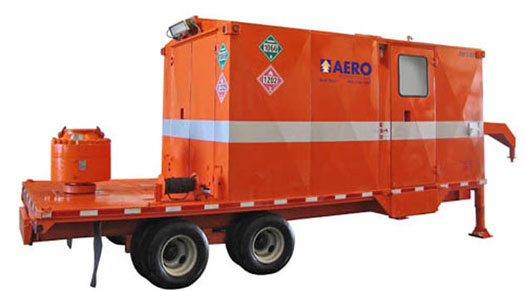

Trailer Mounted Accumulator Ideal for Class III Work

Aero’s trailer mounted 40 gallon accumulators are fifth wheel hitch style with stump for 7” annular which are perfect for class III work.

Key Specifications
Accumulator Bottles	Four, five gallon accumulator bottles to 3,000 psi
Pump	can build the pressure from 1,250 psi to 3,000 psi in one minute and thirty seconds
Accessories	Equipped with eight 25’ fire guard BOP hoses and eight 125’ black jacket hoses
